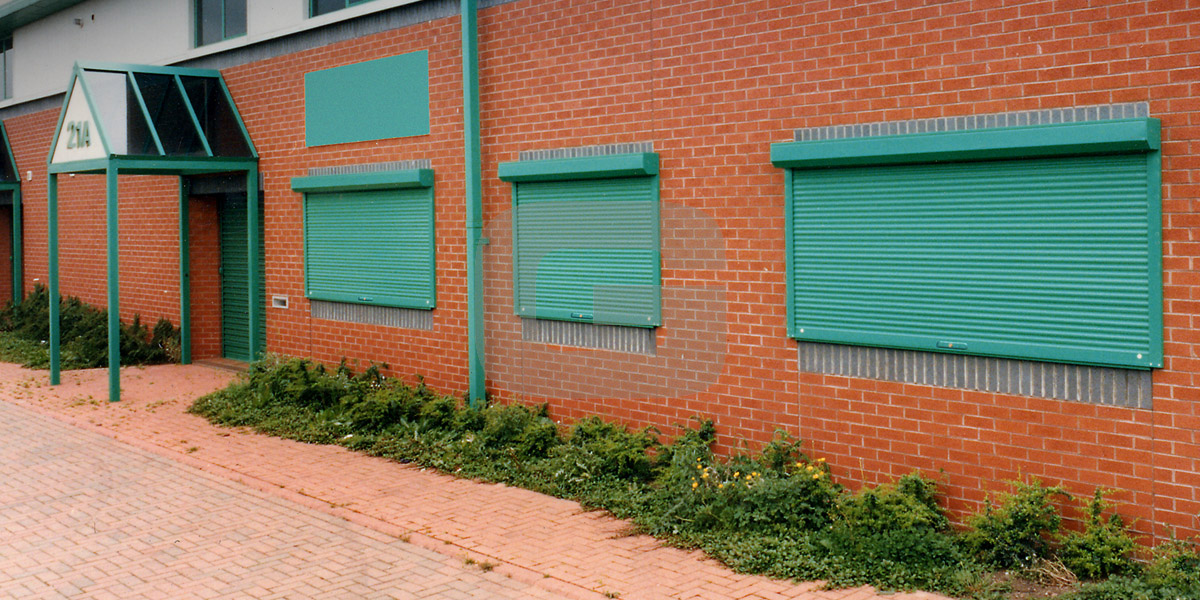

WR15
Lightweight Insulated Aluminium Roller Shutter Model
Lightweight and compact, the Aphrodite WR 15 is a CFC free foam filled aluminium slat, offering insulation and sound deadening.
- CFC free foam filled rolled aluminium curtain profile
- Low to medium security applications
- Spans widths up to 3000mm
- Effective heat and sound insulation
- Used for shading and light control
- Lightweight, ideal for manual operation
- Vented slat option
-
Certifications
- BS EN 13241-1:2003 - Industrial, commercial and garage doors and gates Product standard - Products w/out fire/smoke resistance
- BS EN 12453:2001 - Industrial, commercial and garage doors and gates. Safety in use of power operated doors.
-
Roller Head Plate Sizes
- Height 1000mm > 1500mm -> 165mm
- Height 1600mm > 1900mm -> 180mm
- Height 2000mm > 2300mm -> 205mm
- Height 2300mm > 5000mm -> 250mm
-
Tech Info
- Min width: 500mm
- Max size: 3m w x 4m h - when electrically operated
- Max area: 8m2
- Weight - 4.5kg/m2
-
Standard Specification
- 40 mm slat, either white, brown, cream or medium oak woodgrain
- Guide rails 22mm x 53mm
- Guardian Safe 24 volt control unit (electric operation)
- Anti-fall device
- Hold to run operation (electric operation)
- Plug-in operation (electric operation)
-
Colour Finish
- Polyester powder coat finish to BS colour or RAL number
- Range of corporate branding packages including full colour graphics
- Mill finish
- Anodised
-
Fitting Configurations
- Face fit
- Reveal fit
-
General Options
Protective Bollards
Angle Protection
Polycarbonate Glazing
Coil Casing
-
Security
Security Gates
Pinlocks
Keyswitch Lockbox
Ground Locks
Anti-Tamper Controller
Anti-Ram Bollards
Bottom Rail Lock
-
Safety
Warning Lights
Battery Backup
Reflected Photoelectric Cell
S/R Photoelectric Cell
Safety Pressure Edge Wired
-
Operation & Controls
Activ8
Keypads
Group Control
Fire Brigade Switch
Push Buttons
Biometric Controls
Smoke & Heat Detector
Access Control Relay
RFID Radio Controls
Standard Fire Door Interface Panel
- Remote Control - Hold to run
- Remote Control - One touch operation
- GSM Access
- Software/network connection
- Wind sensor
- Sun sensor
- Fire alarm activation

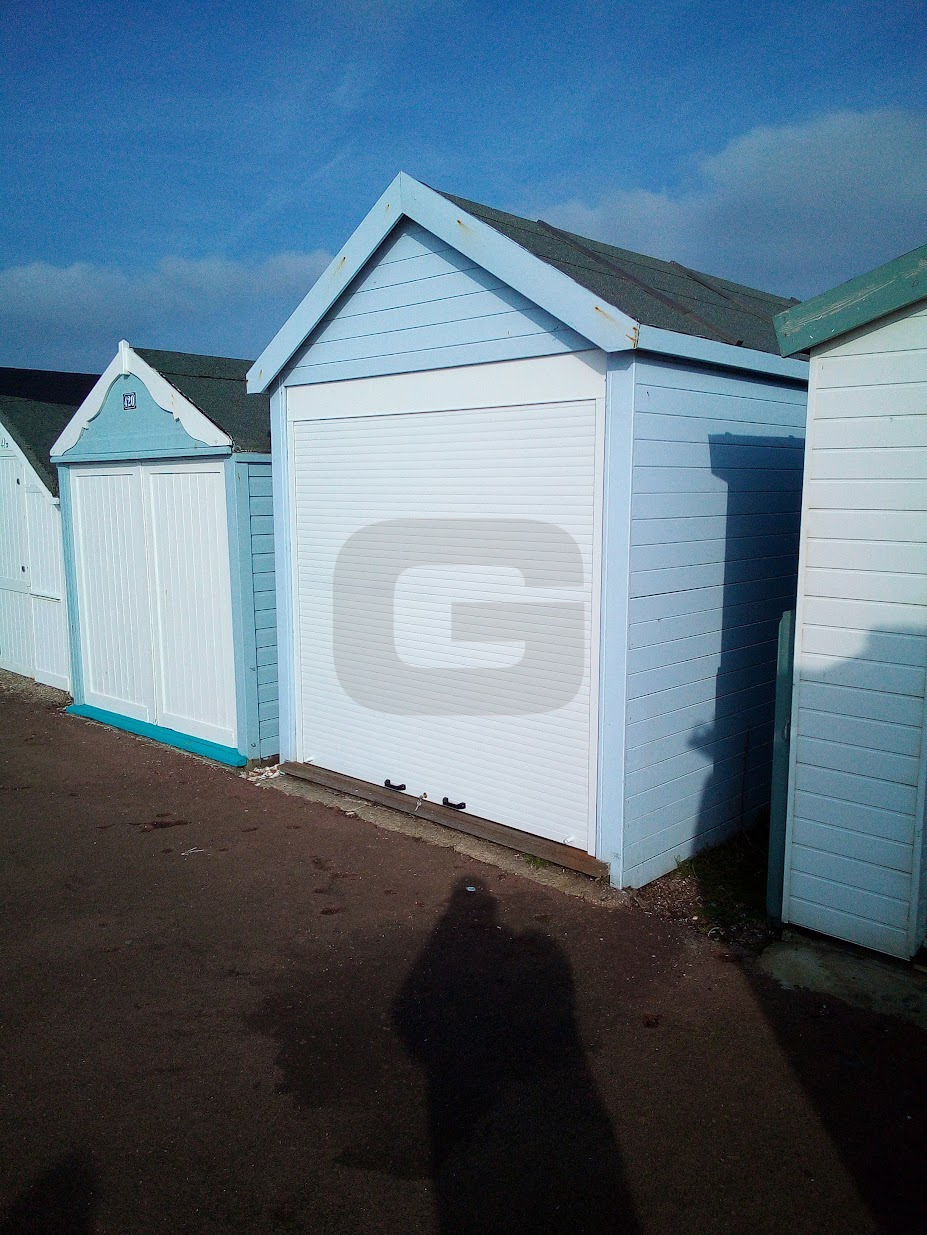

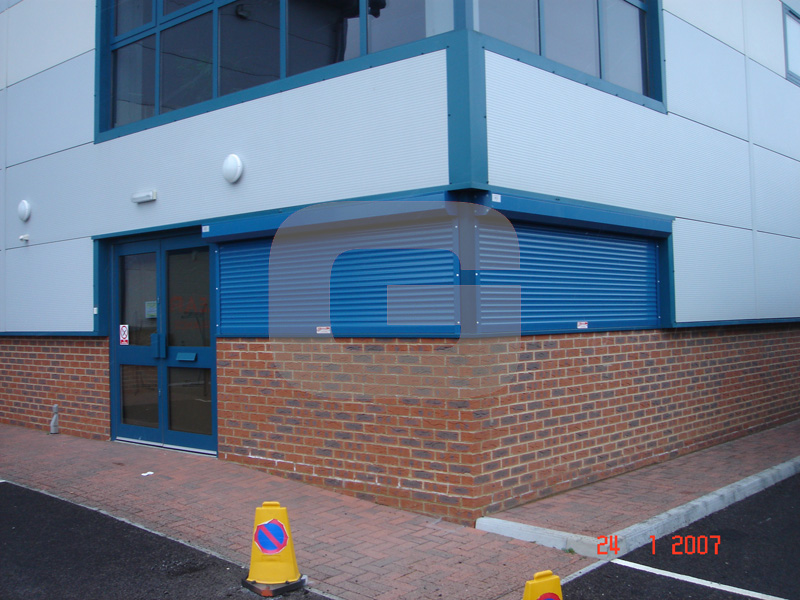

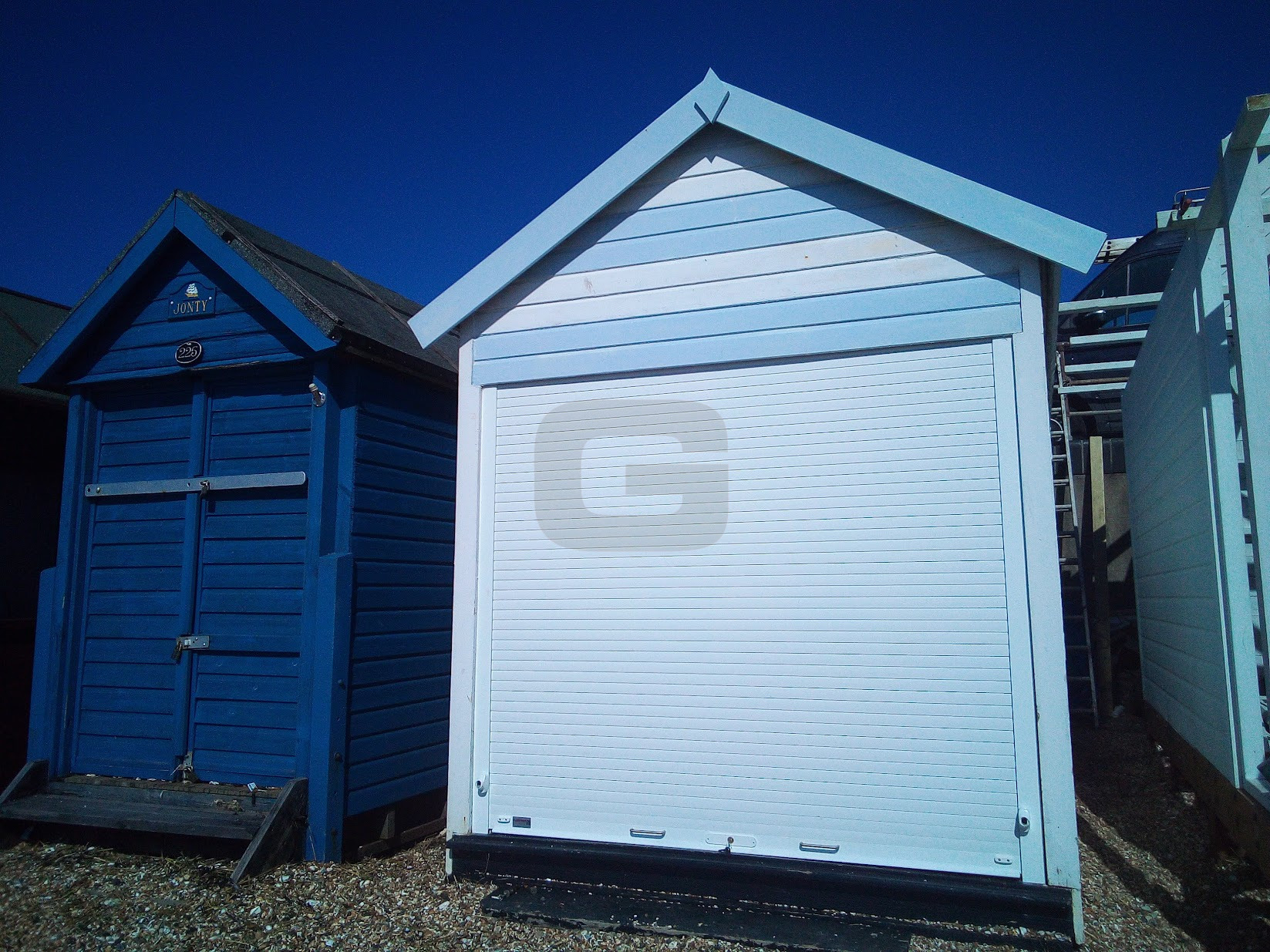

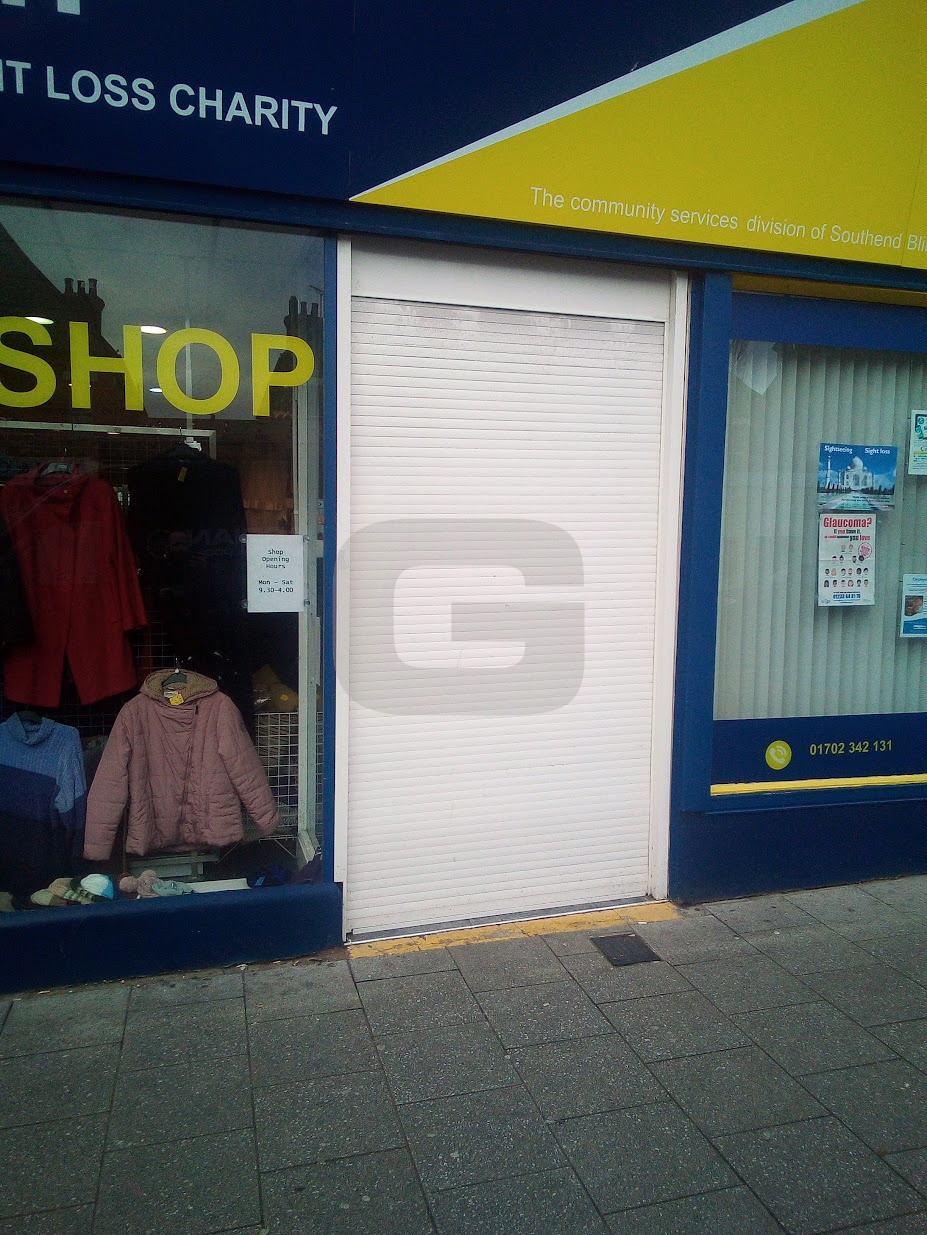

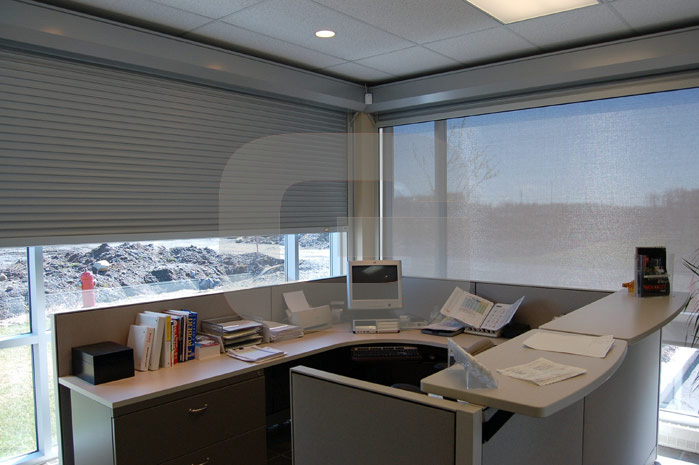

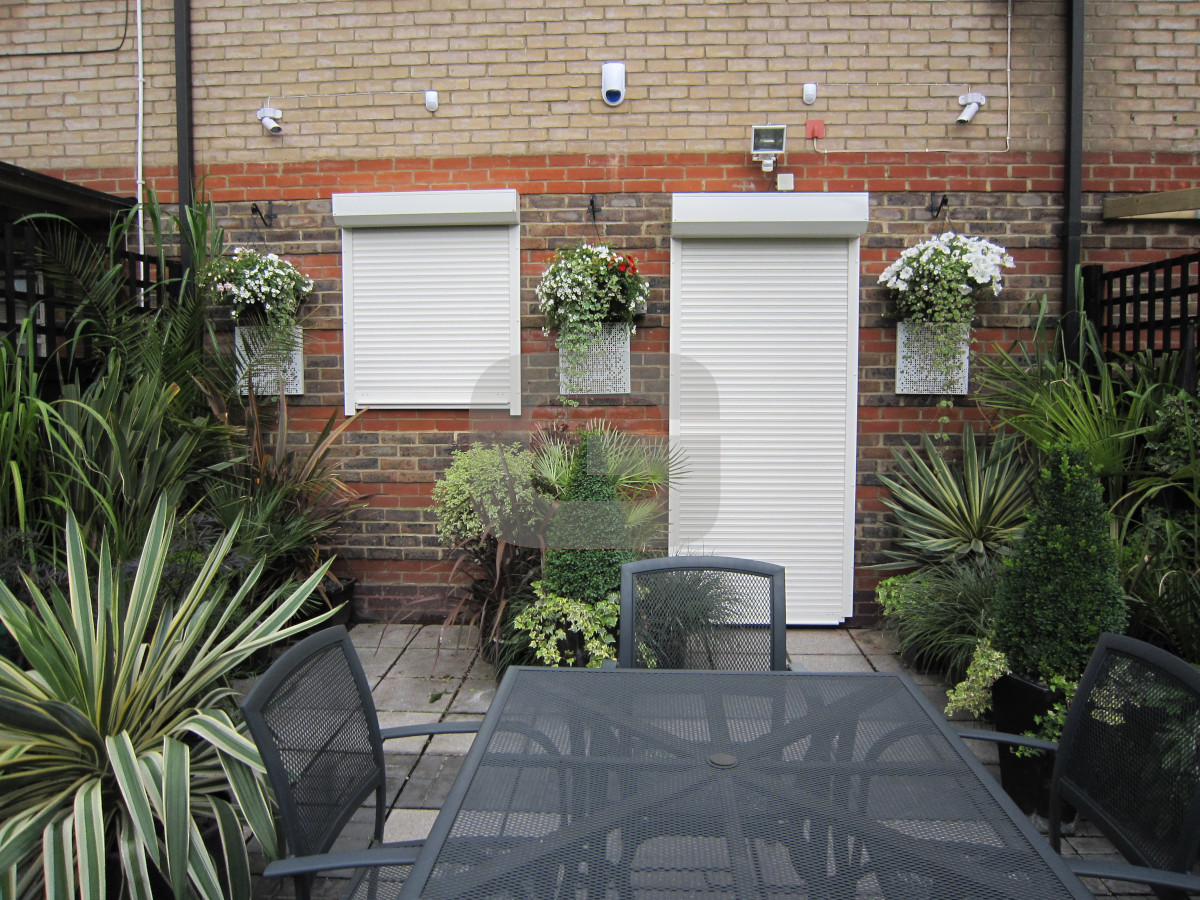

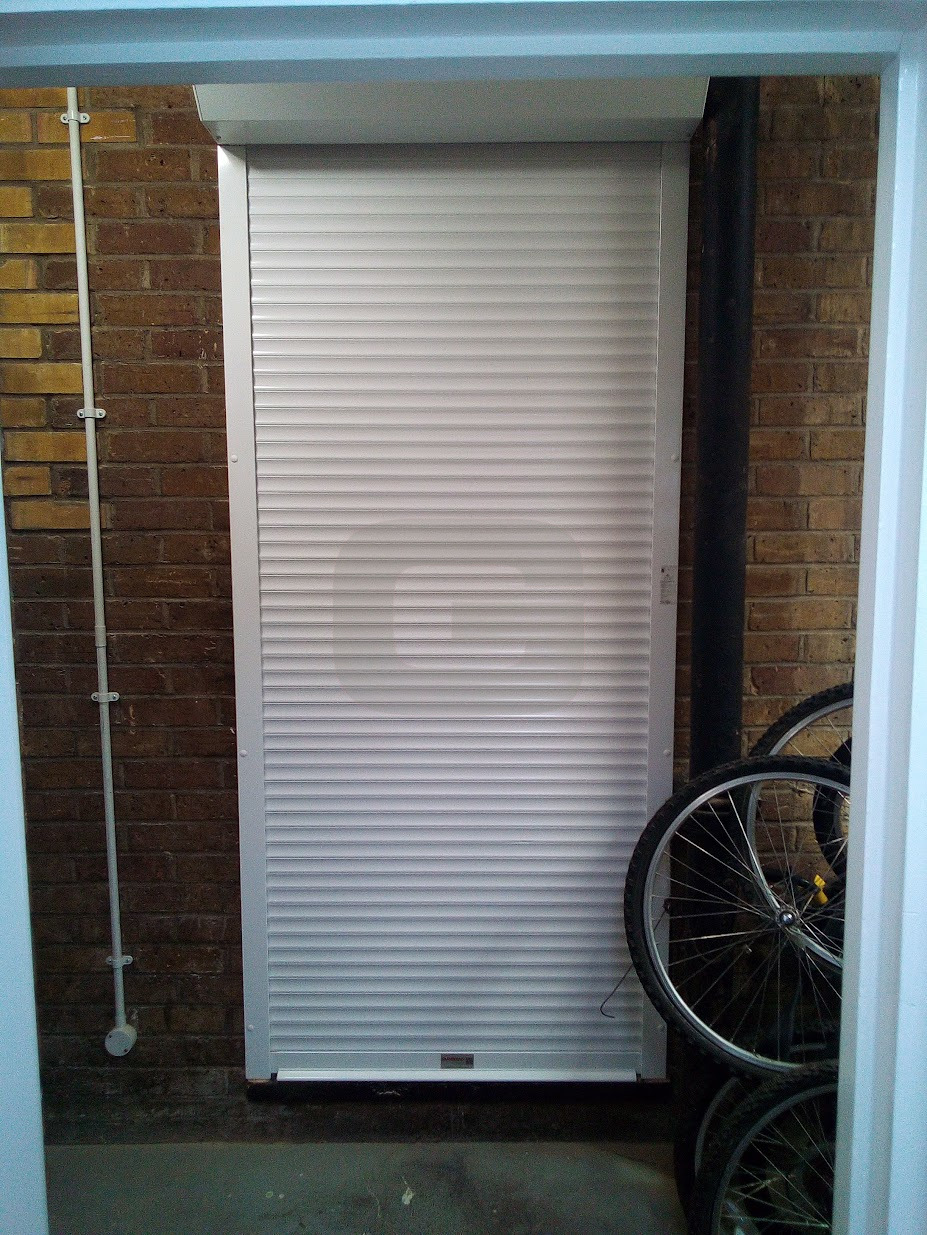

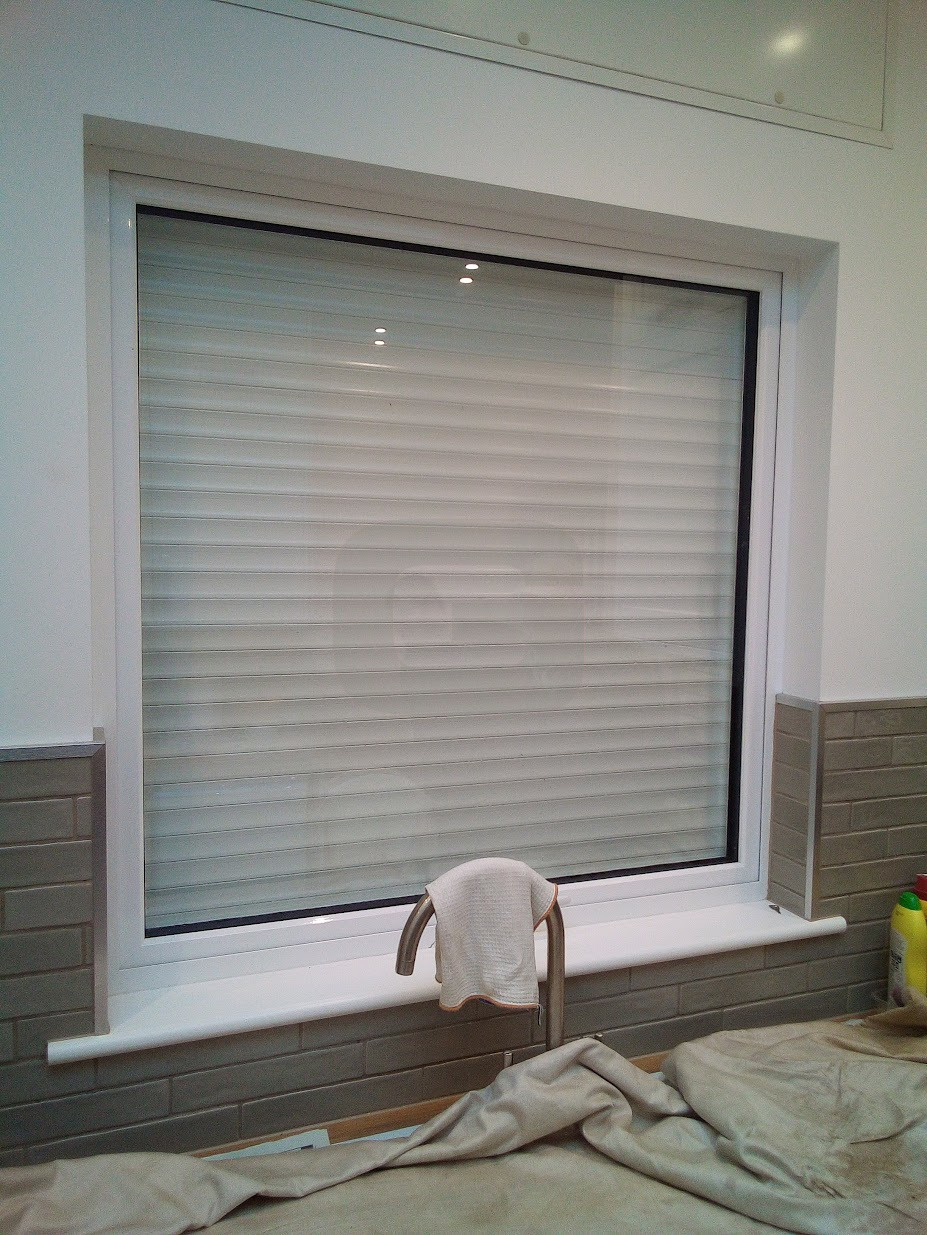

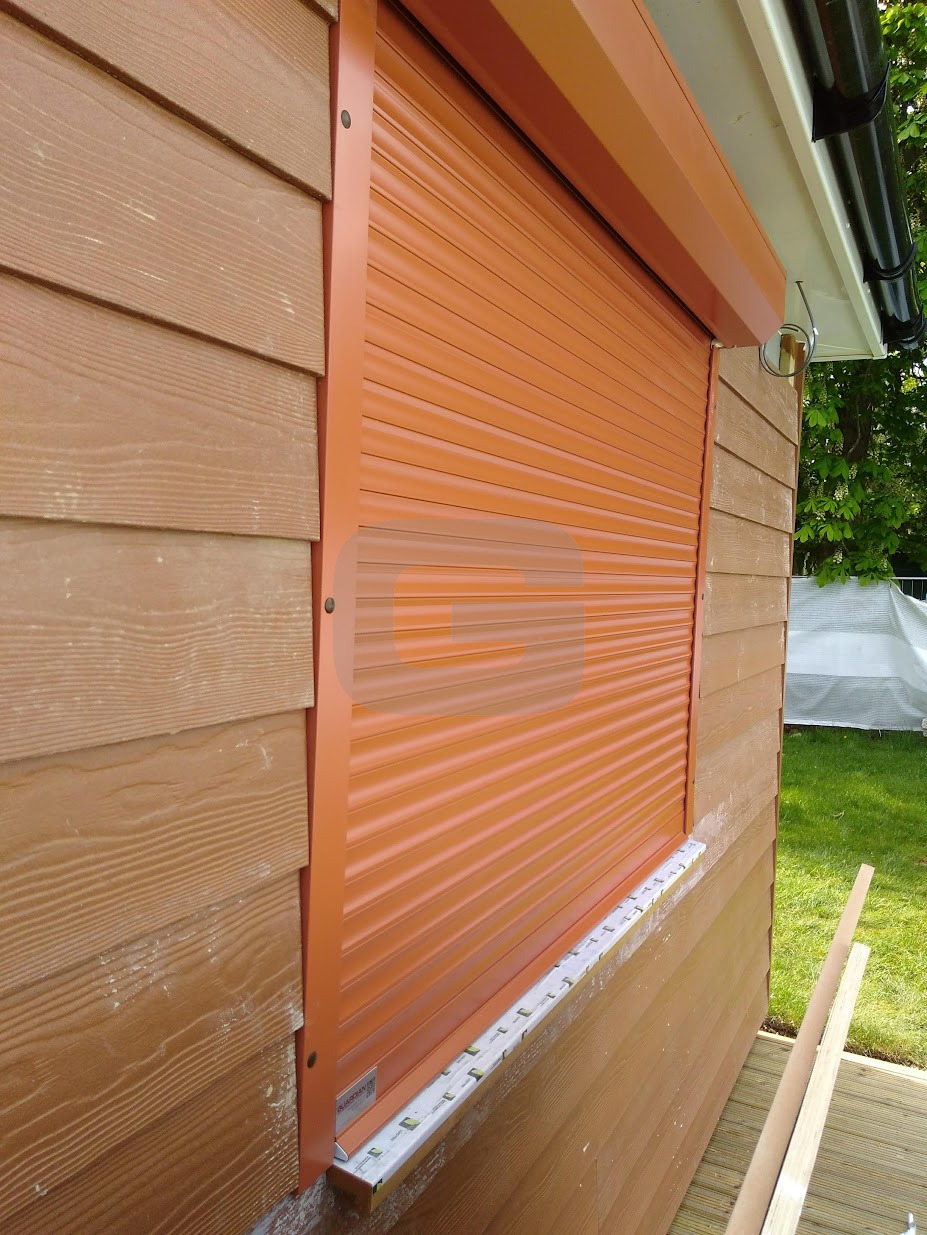

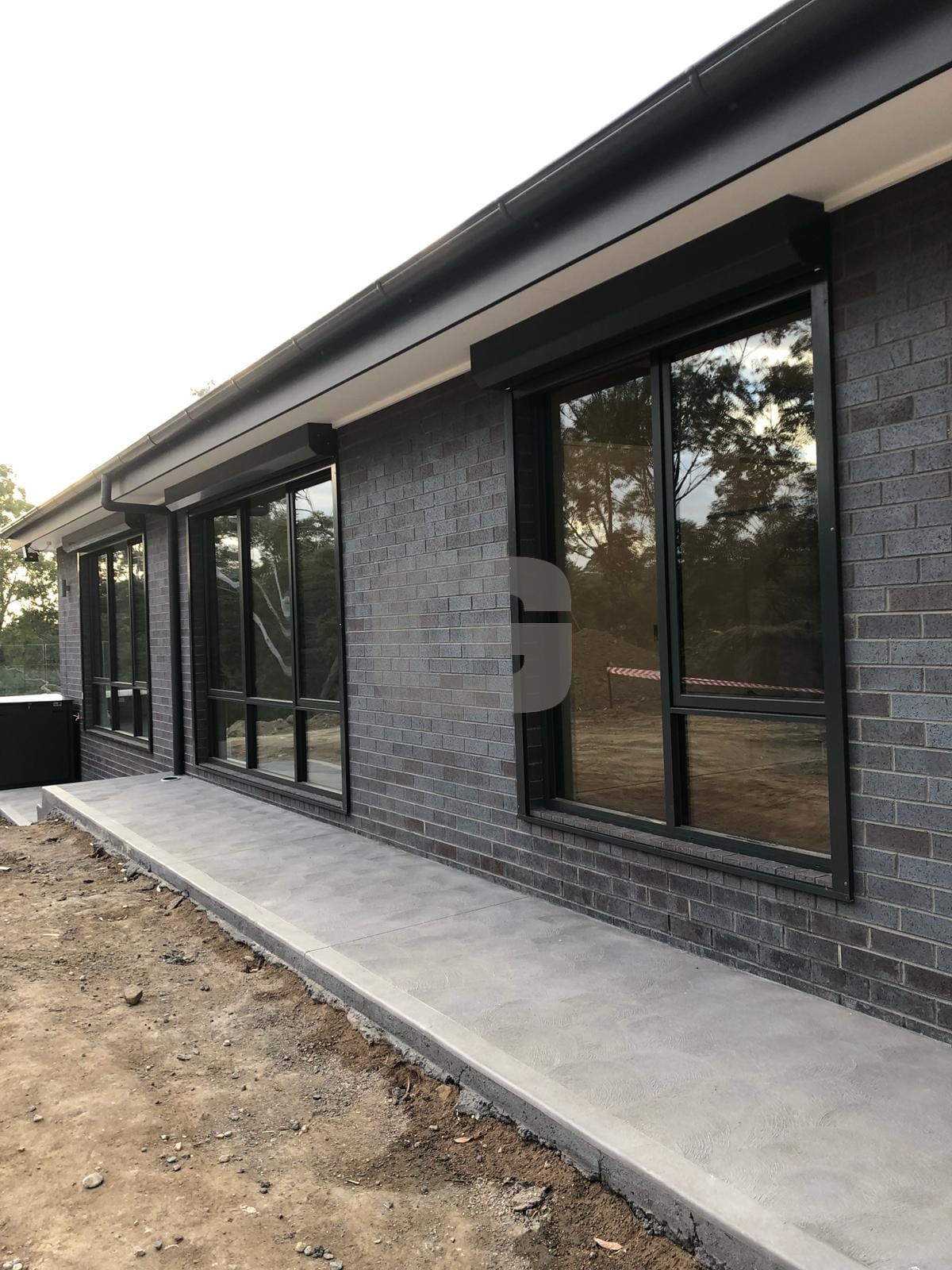

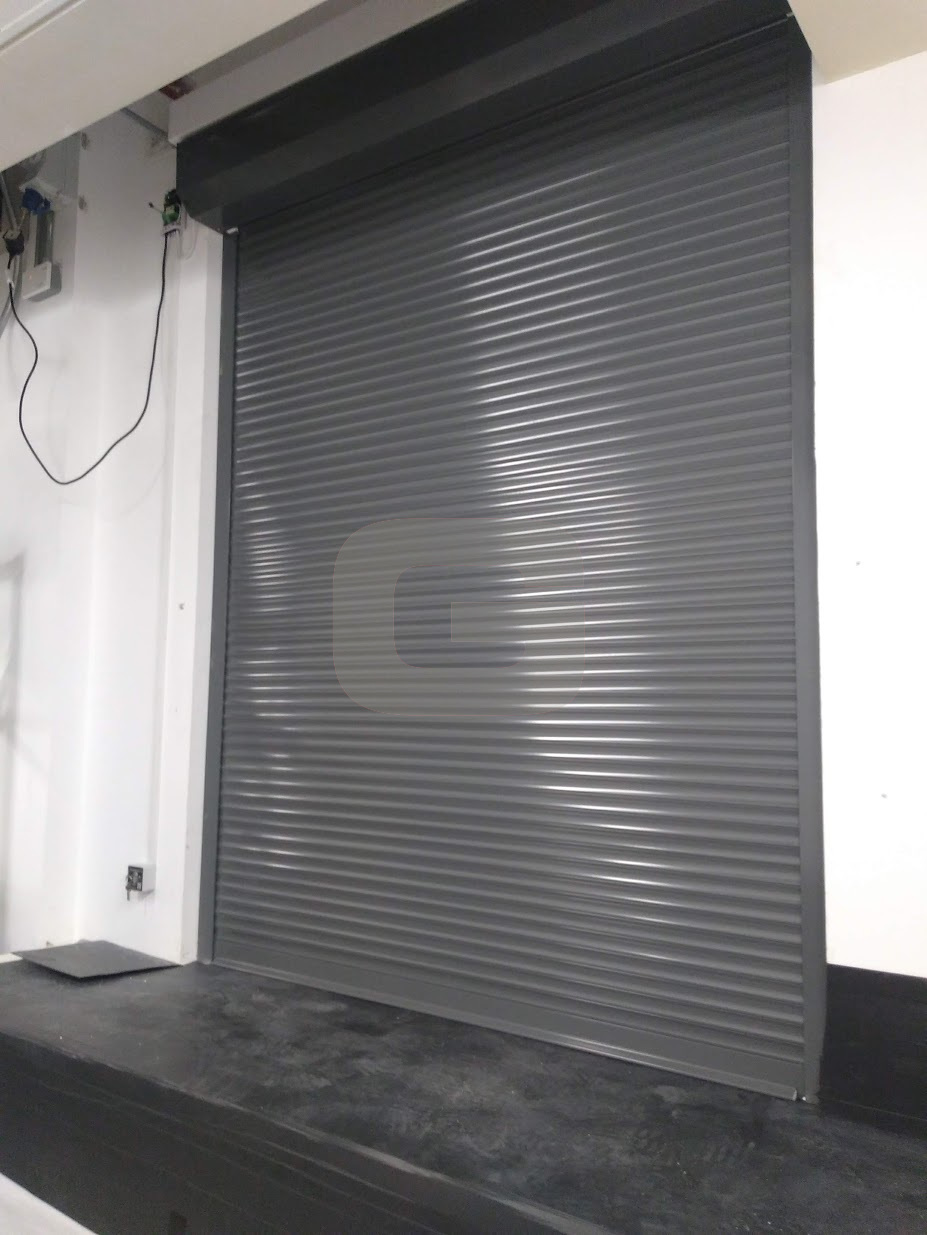

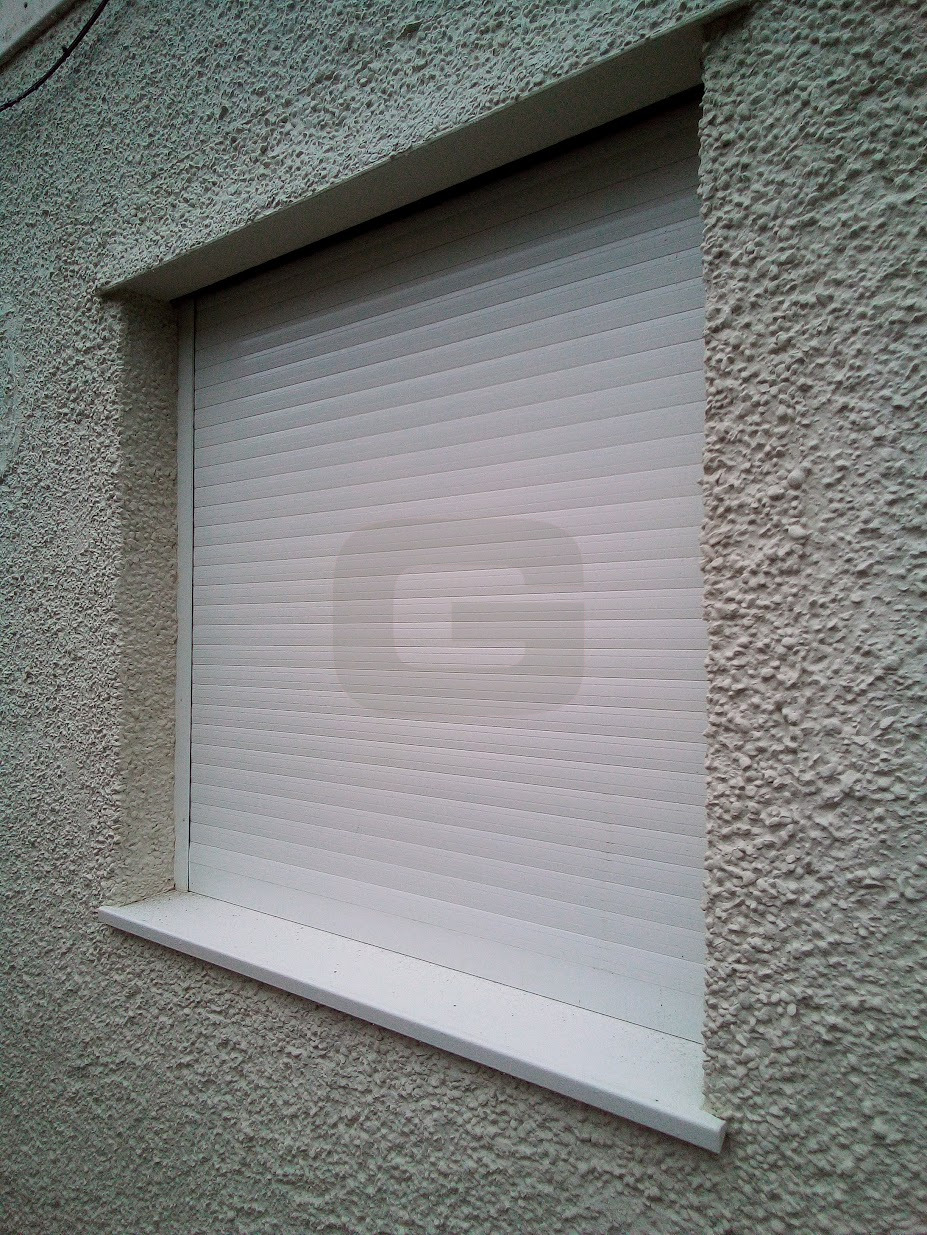

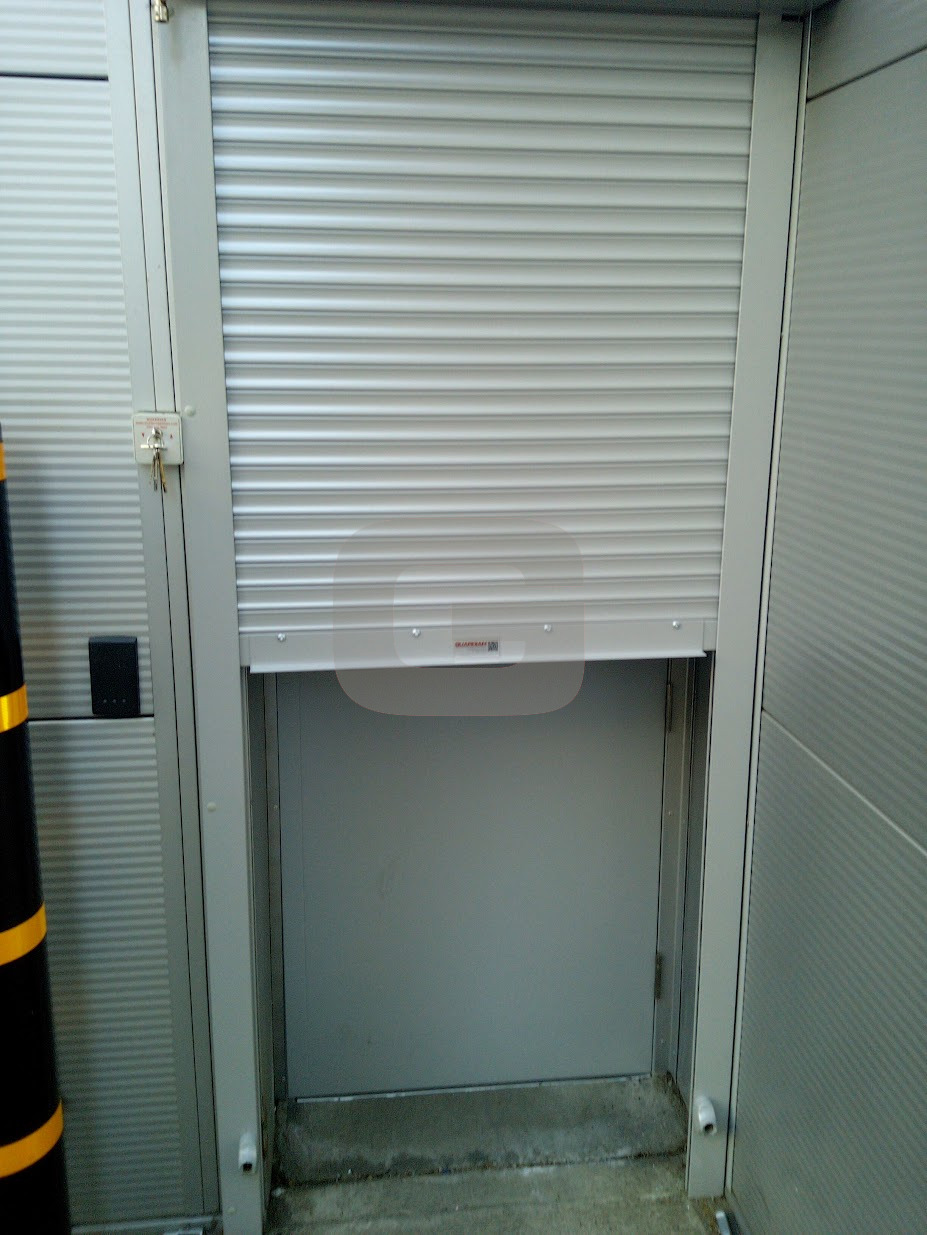

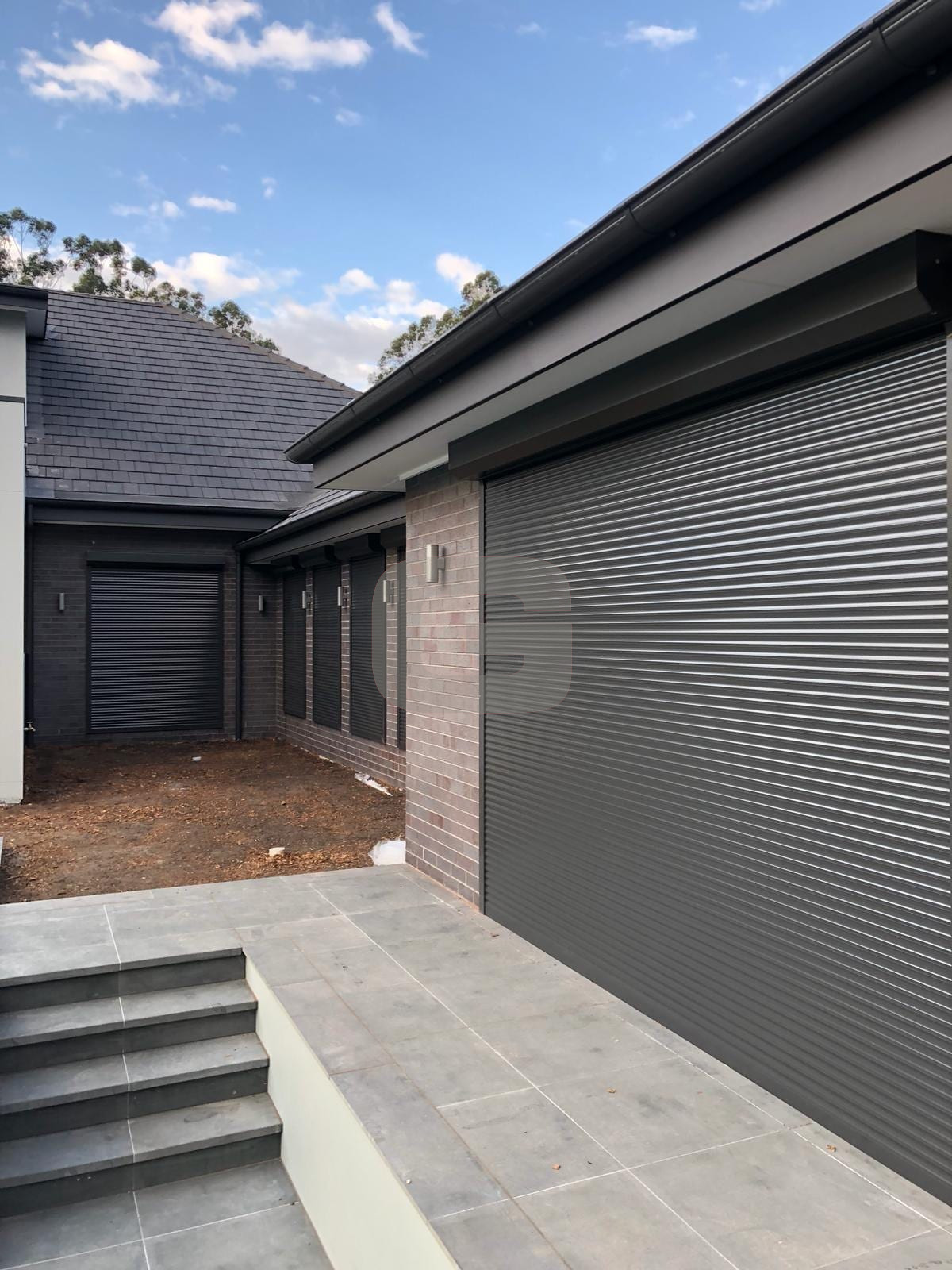

Image Gallery
Peace of Mind Warranties
All Guardian products are guaranteed against defect of material or workmanship by Guardian Doors, subject to correct maintenance and operation, for a period of 12 months from the date of installation. We offer extended warranties for up to 5 years with an agreed maintenance contract.
Call us on 0800 7836602 for more details.
