Product Type
Intended use
Variant
Product
E60-240
Commercial fire shutter model
The Guardian E60-240 fire resitant roller shutter provides a protective barrier in the event of a fire. They also double as a security shutter solution and are suitable for use every day.
All made to measure in the UK to the latest British and European standards the E60-240 is available with a 60, 120 or 240 minutes fire rating. We offer a range of control options for the activation of the shutter in the event of a fire as well as normal every day opening and closing.
Explanation of Fire Rating Symbols
| Integrity & Insulation | |
| E - Integrity | This is the ability of a test component to stop fire from spreading to an unexposed side as a result of penetration of flames or smoke. |
| I - Insulation | This is the ability of a test component to restrict the temperature rise of the non-heated side to below specified levels during the fire, which is not more than +140°C up to +180°C. |
| Integrity & Radiation Reduction | |
| E - Integrity | This is the ability of a test component to stop fire from spreading to an unexposed side as a result of penetration of flames or smoke. |
| W – Reduction of thermal radiation | This is the ability of a test component to resist fire exposure on one side only, so as to reduce the probability of the transmission of fire as a result of significant radiated heat either through the element or from its unexposed surface to neighbouring objects. |
All of the above parameters are followed by a time limit in minutes. The number after a given symbol shows the time the performance criteria is fulfilled during a standardised fire test, eg. EI120, EW60, etc.
-
Certifications
- Tested and assessed by Exova Warringtonfire - Cert ref 314388
- Tested and accredited in accordance with clause 8 of BS476 part 22:1987
- Tested and accredited in accordance with BS EN 1634-1:2008
-
Tech Info
- Max size 28m2
- Weight - 20kg/m2
-
Standard Specification
- 75mm single skin steel lath
- Guardian standard fire door interface
- UPS - Battery backup unit
- Low voltage push button push station or keyswitch control
-
Colour Finish
- Polyester powder coat finish to BS colour or RAL number
- Range of corporate branding packages including full colour graphics
- Galvanised
-
Fitting Configurations
- Face fit
- Reveal fit
-
General Options
Protective Bollards
Angle Protection
-
Safety
Warning Lights
Battery Backup
Reflected Photoelectric Cell
S/R Photoelectric Cell
Safety Pressure Edge Wired
-
Operation & Controls
Mushroom Push Button
Fire Brigade Switch
Push Buttons
Biometric Controls
Access Control Relay

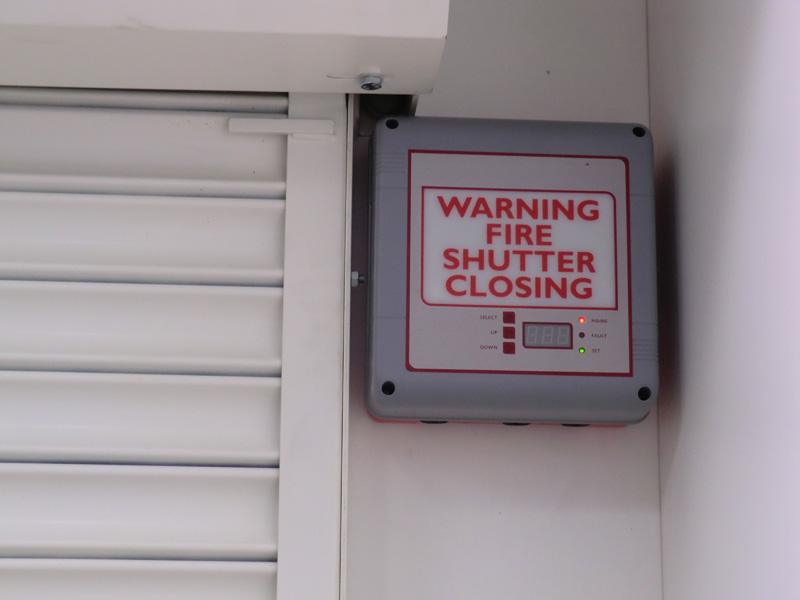

Standard Fire Door Interface Panel
RFID Radio Controls
- Remote Control - Hold to run
- GSM Access
- Software/network connection
- Wind sensor
- Sun sensor
- Fire alarm activation

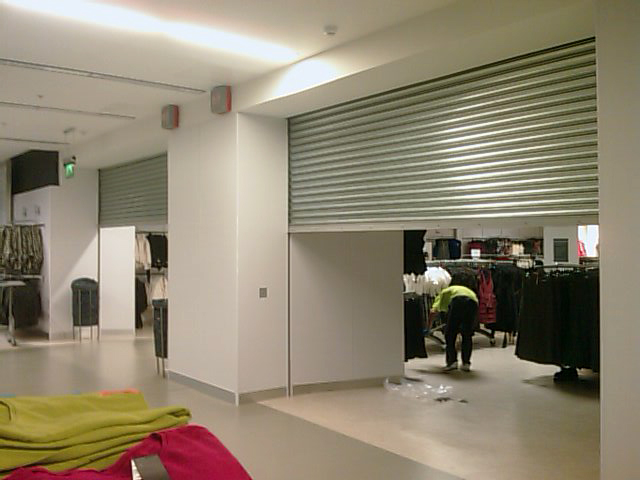

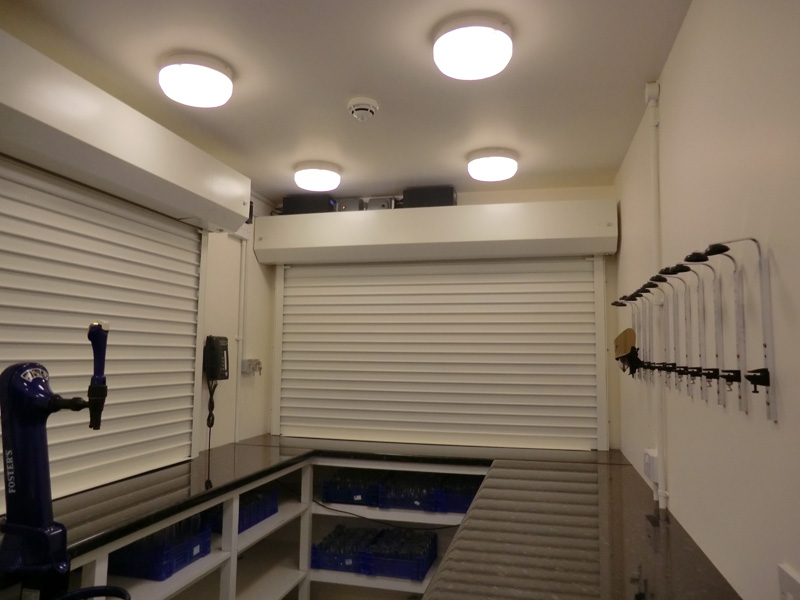

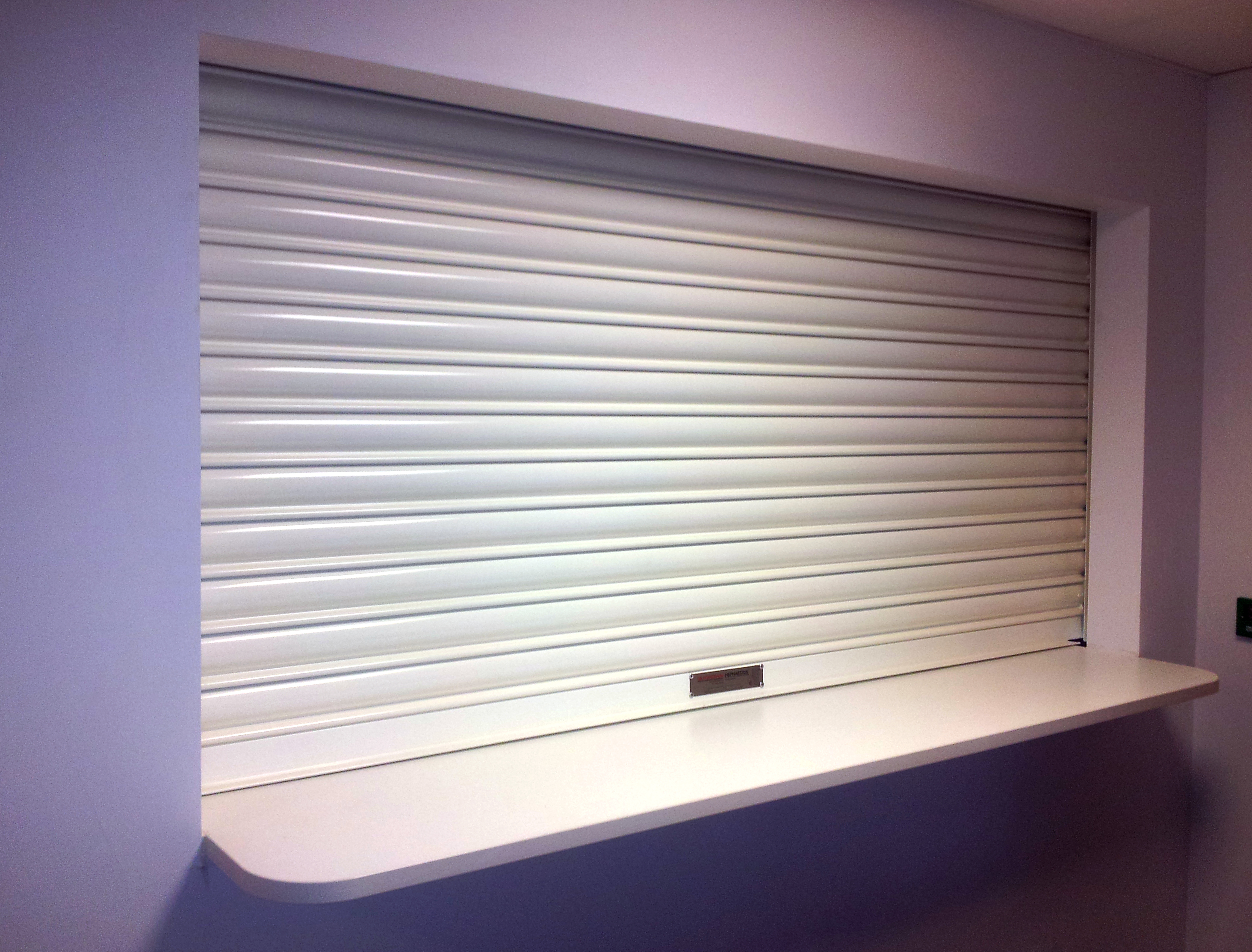

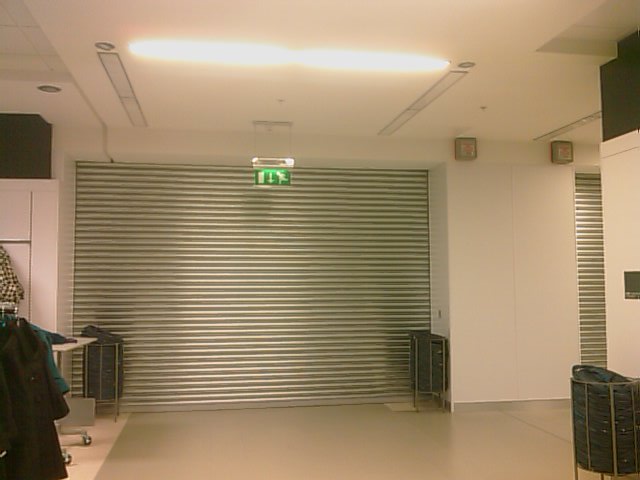

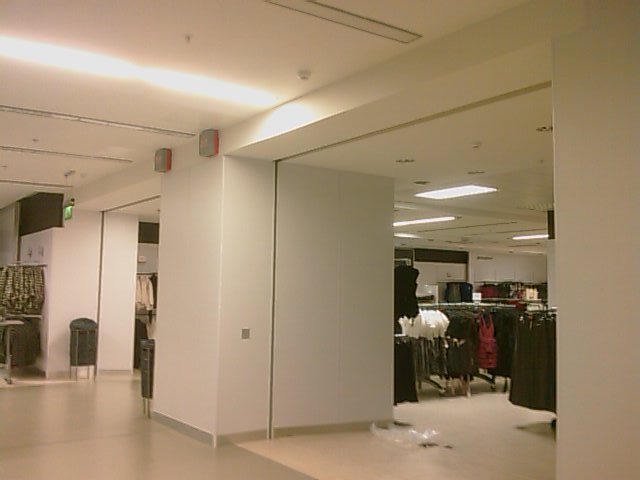

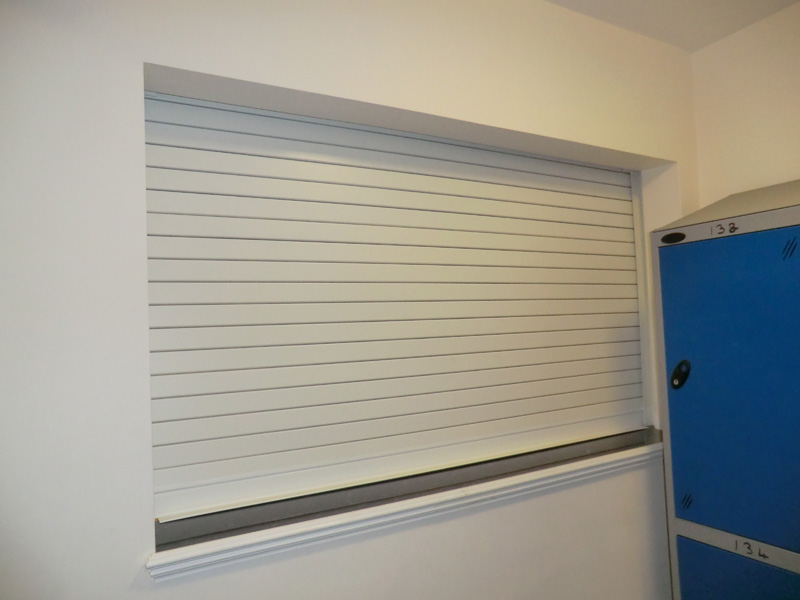

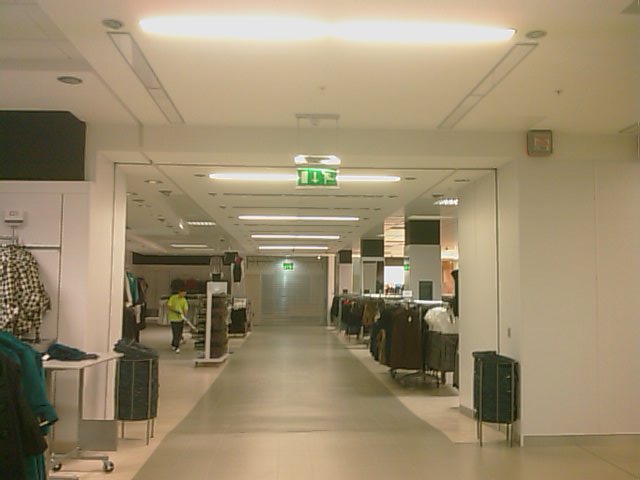

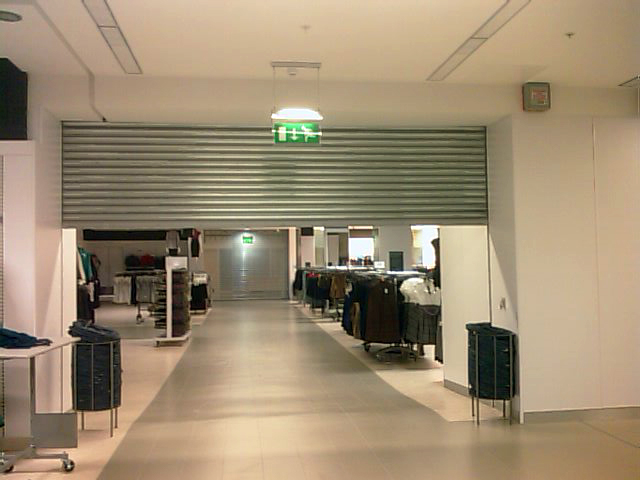

Image Gallery
Peace of Mind Warranties
All Guardian products are guaranteed against defect of material or workmanship by Guardian Doors, subject to correct maintenance and operation, for a period of 12 months from the date of installation. We offer extended warranties for up to 5 years with an agreed maintenance contract.
Call us on 0800 7836602 for more details.
