Zip

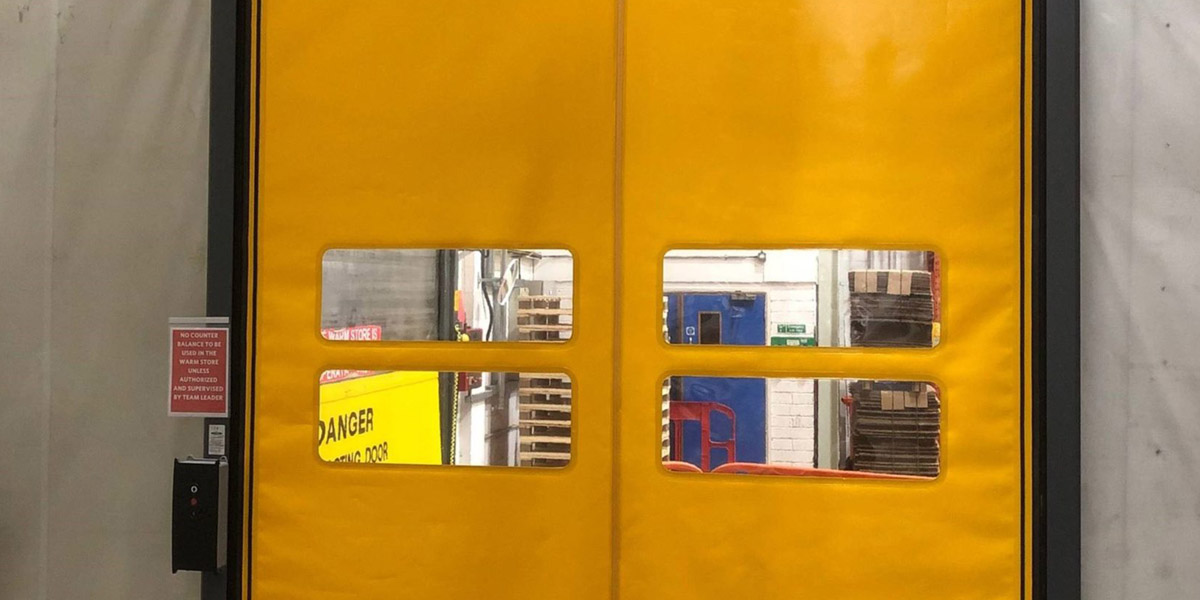

Self-repairing high speed door ideal for fast and frequently used passages
The Zip is intended as a fast, user-friendly partitioning of spaces and provides energy saving, draught exclusion and climate control resulting in significant energy savings. The self-lubricating rails reduce interruptions, guaranteeing minimal delay in your production process.
- Self repairing
- Spring loaded zipper closure keeps the door curtain under tension
- Soft (Soft-Edge) bottom beam
- Safety first with standard light curtain
Variants available:
- Zip Cleanroom with Wind Class 3 and special seals for optimal protection
- Zip Emergency Exit for optimal safety
- Zip ISO for cold rooms
-
Certifications
- EN13241 compliant
-
Tech Info
- Mains voltage LNPE~230V/50Hz/16AT
- IP65 protection
- Max consumed power 1.5kW
-
Standard Specification
- Max opening speed 2m/s
- Max closing speed 0.5m/s
- Max size 4500mm x 4500mm
- Integrated light curtain
-
Colour Finish
- Door curtain is available in RAL colours 5002, 5005, 9005, 9016, 7038, 3002, 2004, 1003 and 6026
- Steel guides and top cover are galvanized steel as standard but can be powder coated to any RAL colour
-
Structural Provisions
- A flat mounting frame and the necessary mounting space must be available
- Within a radius of 500 mm of where the control unit without frequency control will be positioned there must be a wall socket: CEE-form red, 3N~400V/50Hz/16A
- Within a radius of 500 mm of where the control unit with frequency control will be positioned there must be a wall socket: CEE-form blue, 1 x 230V fused, slow operation 16A fitted with a circuit-breaker of at least 300 mA
- The control box usually is fitted on the drive side, at a height of approx. 1500 mm from the floor
-
Fitting Configurations
- Face fit
- Reveal fit
-
General Options
Protective Bollards
Angle Protection
Coil Casing
-
Security
Anti-Ram Bollards
-
Safety
Laser Safety Sensor
Warning Lights
Battery Backup
Traffic Lights
Reflected Photoelectric Cell
S/R Photoelectric Cell
Safety Pressure Edge Wired
-
Driving Motor Options
High Speed FI Drive
-
Operation & Controls
Falcon
Milan
Condor
Magic Switch
Activ8
Level 2 Control Panel
Level 3 Control Panel
Keypads
Mushroom Push Button
Fire Brigade Switch
Push Buttons
Biometric Controls
Smoke & Heat Detector
Access Control Relay
Industrial Remote Controls
RFID Radio Controls
Standard Fire Door Interface Panel
- Remote control - One touch operation
- GSM access
- Software/network connection
- Wind sensor
- Sun sensor
- Fire alarm activation
Image Gallery
Peace of Mind Warranties
All Guardian products are guaranteed against defect of material or workmanship by Guardian Doors, subject to correct maintenance and operation, for a period of 12 months from the date of installation. We offer extended warranties for up to 5 years with an agreed maintenance contract.
Call us on 0800 7836602 for more details.
