Product
PVC Strip Curtains
Our strip curtains are a simple draught sealing system for use in doorways or as a partition between work areas. The strips are constructed from transparent, flexible PVC strips. The strips are attached to the top mounting rail (wall mounting or ceiling mounting) by means of the unique VEH loop system
Applications
- to prevent or reduce draft
- as a partition (easy to pass through)
- to reduce noise nuisance
- to protect personnel and goods from adverse weather conditions
- to keep out birds and insects
- to prevent dust and smoke from spreading
- to protect against ultraviolet radiation during welding
- in cold storage and freezing industry (special cold resistant material qualit
-
Construction
Our strip curtains consist of a range of different colour PVC strips with welded loops. These are suspended with the desired overlap from tubing which is attached to the lintel with brackets. The outer strips can be supplied in an orange colour to mark the passage width of the opening
-
Material
The strips are made of extruded transparent PVC and are available in the following qualities:
Normal (N) to -5C Freezing room quality (VC) to -35C Transparency 83%-90% Strips Flame retardant -
Dimensions
Width Thick Height 200mm 2mm Up to 3000mm 300mm 3mm Up to 4000mm 400mm 4mm Up to 5000mm -
Overlap
For overlapping the strips there is a choice of:
- for 200 x 2mm 2/5 - 4/5
- for 300 x 3mm 2/7 - 4/7 - 6/7
- for 400 x 4mm 2/9 - 4/9 - 6/9 - 8/9
The overlap percentage is largely determined by the degree of draught. The greater the overlap, the better the draught sealing.
-
Material Strength
Property DIN Unit (N) (KB) Tensile strength 53455 N/mm 17 13 Tearing strength 53515 N/mm >5 >2 Elong. at break 53455 % 300 420 Hardness 53505 Shore-A 77 63 -
General Options
- top mounting rail and brackets in stainless steel
- straight sliding to the left or to the right in one section
- straight sliding to the left and right in two sections
- straight sliding to the left or to the right in two sections
- round the corner sliding in one section
- spring loaded curtain retainer for sliding applications
-
Safety
The strips have rounded edges.
-
Structure
Special structural provisions are not generally required. A stable material for attachment by means of screws or bolts is sufficient.

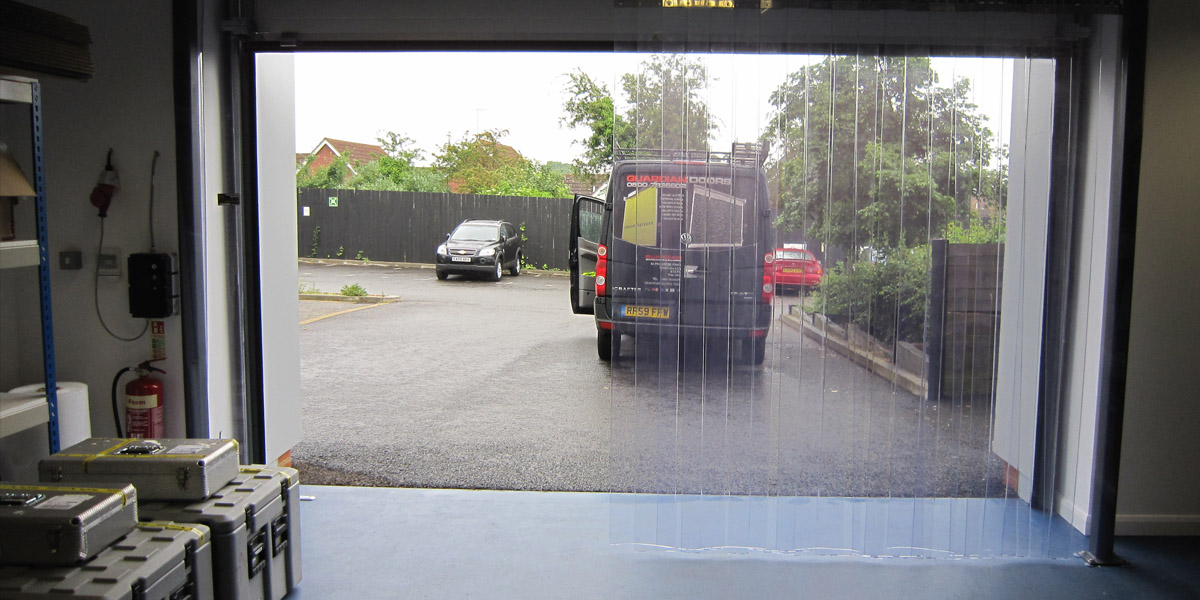

Image Gallery
Peace of Mind Warranties
All Guardian products are guaranteed against defect of material or workmanship by Guardian Doors, subject to correct maintenance and operation, for a period of 12 months from the date of installation. We offer extended warranties for up to 5 years with an agreed maintenance contract.
Call us on 0800 7836602 for more details.
