Thermal Break Commercial
Great finish with good insulation properties
High-Performance Insulated Roller Shutter for Industrial Commercial and Domestic Use
Engineered for energy efficiency and durability, the Thermal Break Commercial Insulated Roller Shutter is the ideal solution for separating temperature-sensitive environments in industrial commercial and domestic settings. Featuring a contemporary 90mm foam-filled steel lath, this insulated roller shutter provides excellent thermal and acoustic insulation while maintaining a sleek, modern appearance.
Designed for frequent use, it offers a highly secure and efficient barrier, helping to reduce heat loss, lower energy costs, and improve overall building performance.
- Certified thermal performance with a U-value of 3.3 W/m²K
- Wide-span capability up to 8000mm
- Excellent heat and sound insulation properties
- Available with single or three-phase motorisation options
- Multiple control configurations for tailored operation
- Supplied in a wide range of durable factory-applied colour finishes
-
Certifications
- BS EN 13241-1:2003 - Industrial, commercial and garage doors and gates Product standard - Products w/out fire/smoke resistance
- BS EN 12424:2000 - Industrial, commercial and garage doors and gates. Resistance to wind load. Classification 3.
- BS EN 12453:2001 - Industrial, commercial and garage doors and gates. Safety in use of power operated doors
-
Roller Head Plate Sizes
- Height 2000mm -> 5000mm = 406mm
- Height 5000mm -> 6000mm = 450mm
-
Tech Info
- Max size 8m x 8m
- Weight - 20kg/m2
- Width - 1500-8000mm
- Height - 2000-8000mm
- Opening speed - to 0.3 m/sec
- Closing speed - approx. 0.25 m/sec
- Power supply 400V / 50 Hz / 1A / 2.2 kW
- Electrical elements – IP54
-
Standard Specification
- Galvanised twin skin steel lath 90mm x 19mm
- Full weather seals
- One touch opening
- Anti-fall safety device
- Coil casing
-
Colour Finish
Anthracite RAL 7016
Black RAL 9005
Chili Red RAL 3000
Dark Green RAL 6009
Dark Grey RAL 7011
Galvanised
Golden Oak
Goosewing Grey RAL 7038
Juniper Green BS12 B29
Merlin Grey BS18 B25
Moorland Green BS12 B21
Olive Green RAL 6003
Red
Sargasso RAL 5003
Silver RAL 9006
Solent Blue BS18 E53
Van Dyke Brown RAL 8014
White RAL 9003
-
Fitting Configurations
- Face fit
- Reveal fit
-
General Options
Coil Casing
-
Security
Security Gates
Keyswitch Lockbox
Ground Locks
Anti-Tamper Controller
Anti-Ram Bollards
Pinlocks
Bottom Rail Lock
-
Safety
Laser Safety Sensor
Light Curtains
Reflected Photoelectric Cell
S/R Photoelectric Cell
Safety Pressure Edge Wireless
Safety Pressure Edge Wired
Battery Backup
Traffic Lights
-
Driving Motor Options
High Speed FI Drive
-
Operation & Controls
Falcon
Milan
Condor
Magic Switch
Activ8
Level 1 Control Panel
Level 2 Control Panel
Level 3 Control Panel
Induction Loop
Keyswitches
Keypads
Mushroom Push Button
Fire Brigade Switch
Pull Cord
Push Buttons
Biometric Controls
Smoke & Heat Detector
Access Control Relay
RFID Radio Controls
- Remote Control - Hold to run
- Remote Control - One touch operation
- GSM Access
- Software/network connection
- Wind sensor
- Sun sensor
- Fire alarm activation

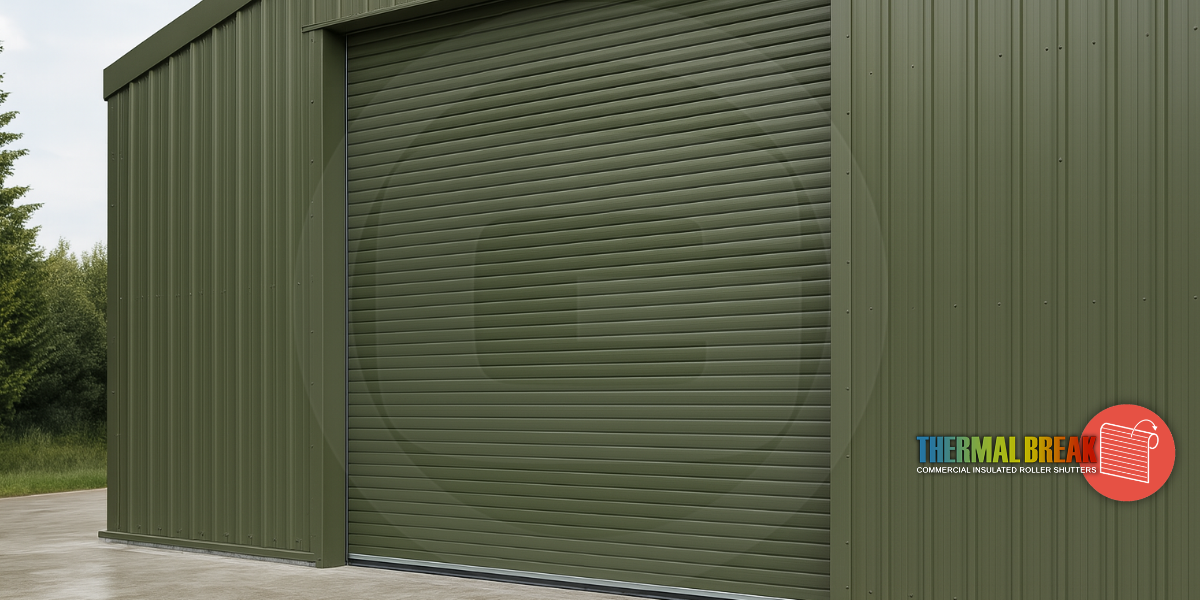

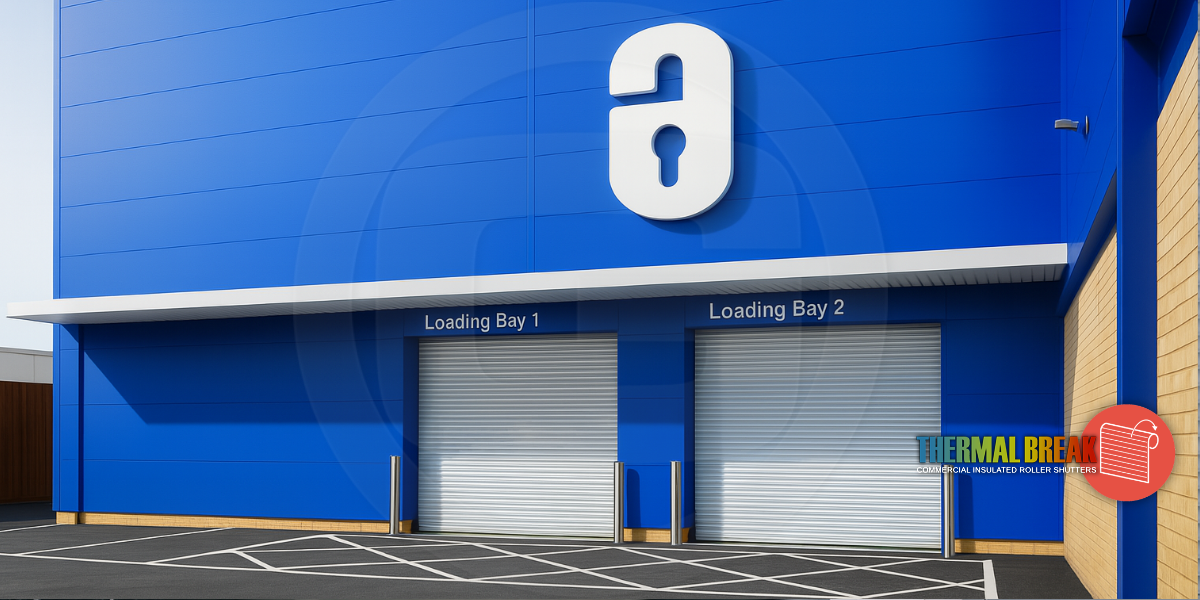

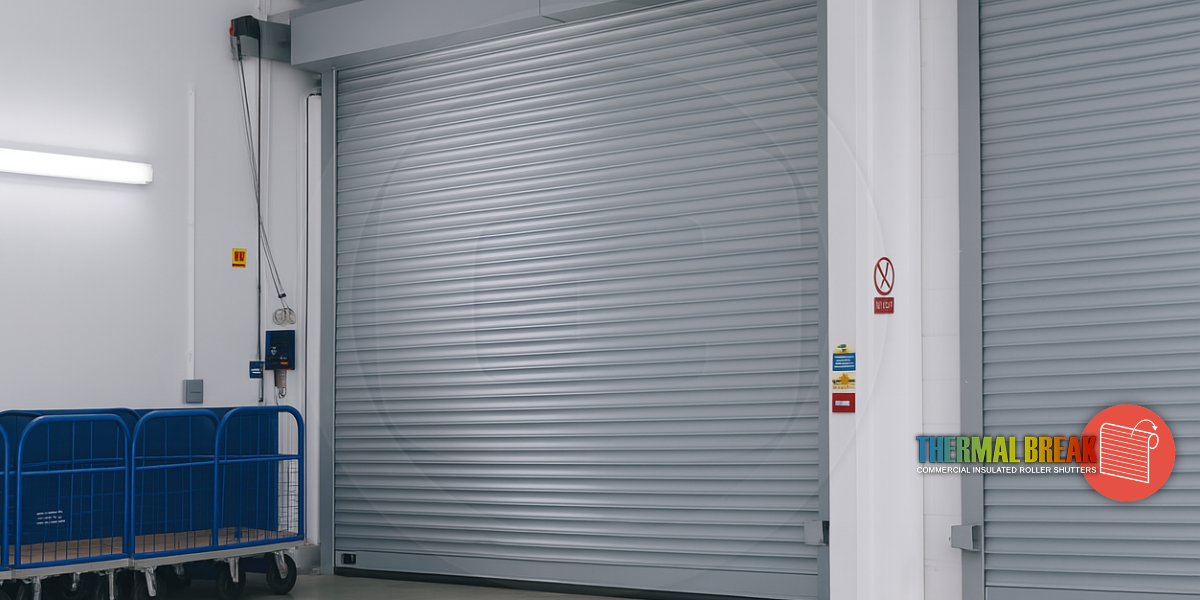

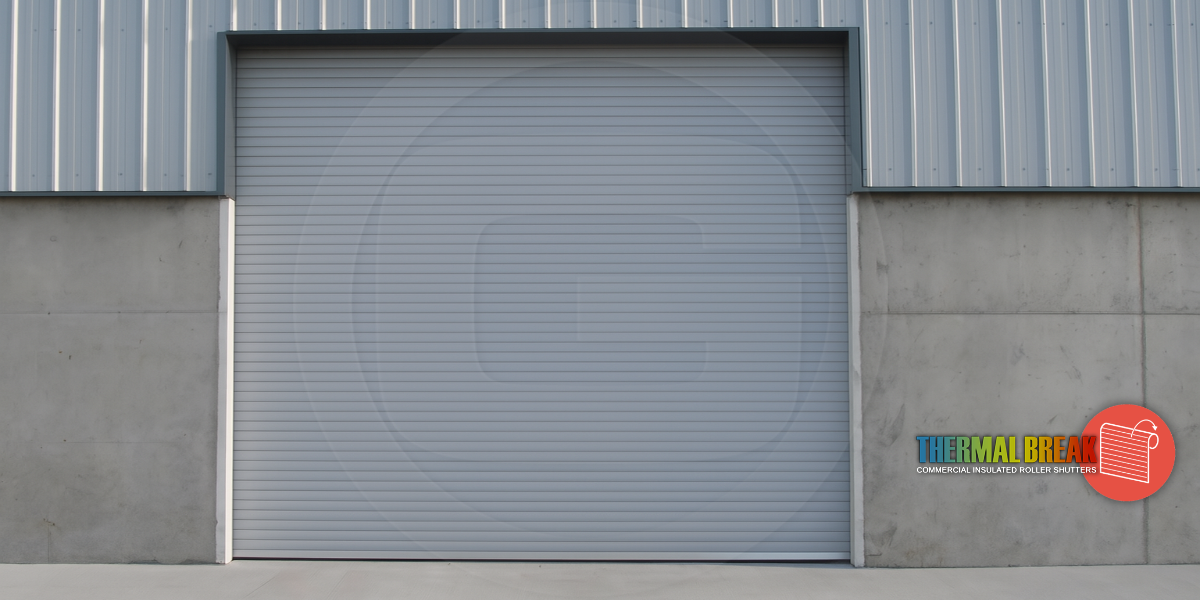

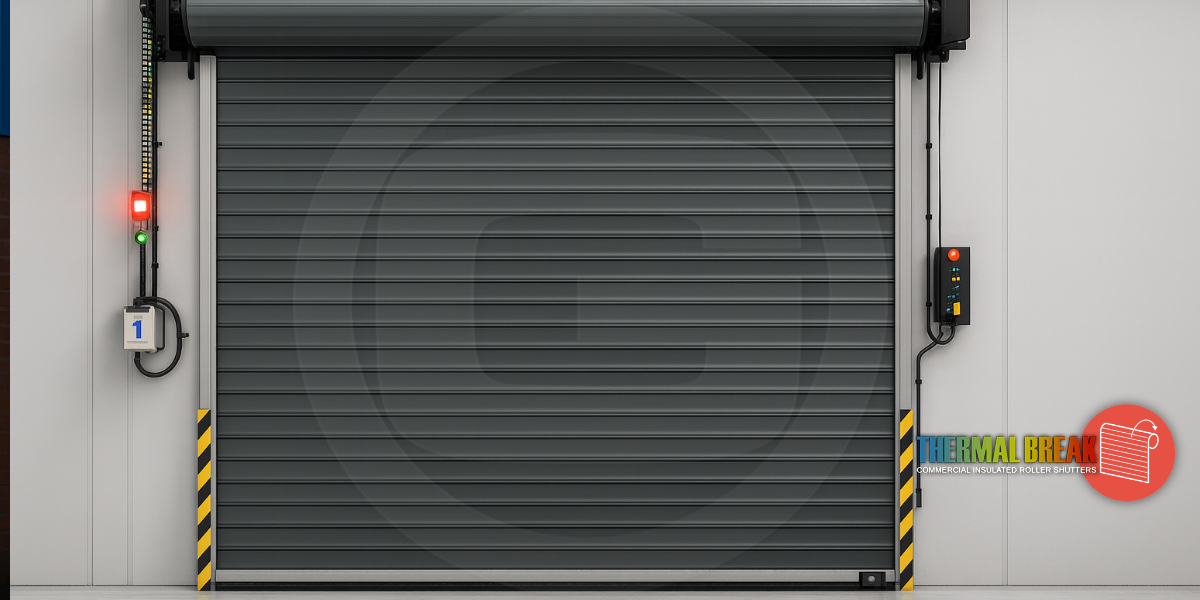

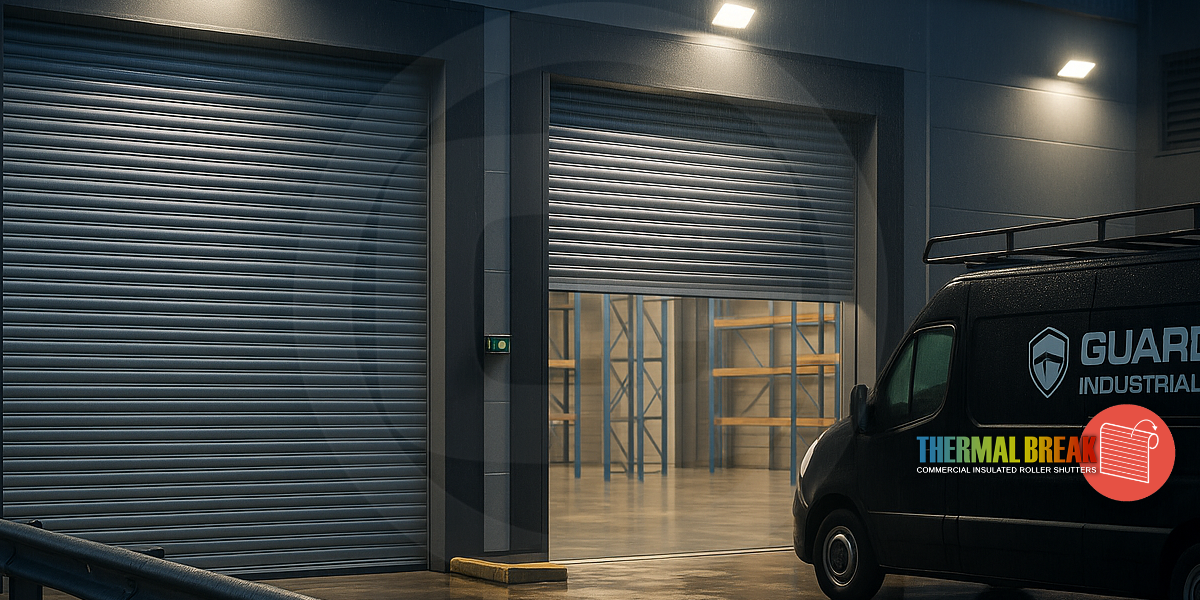

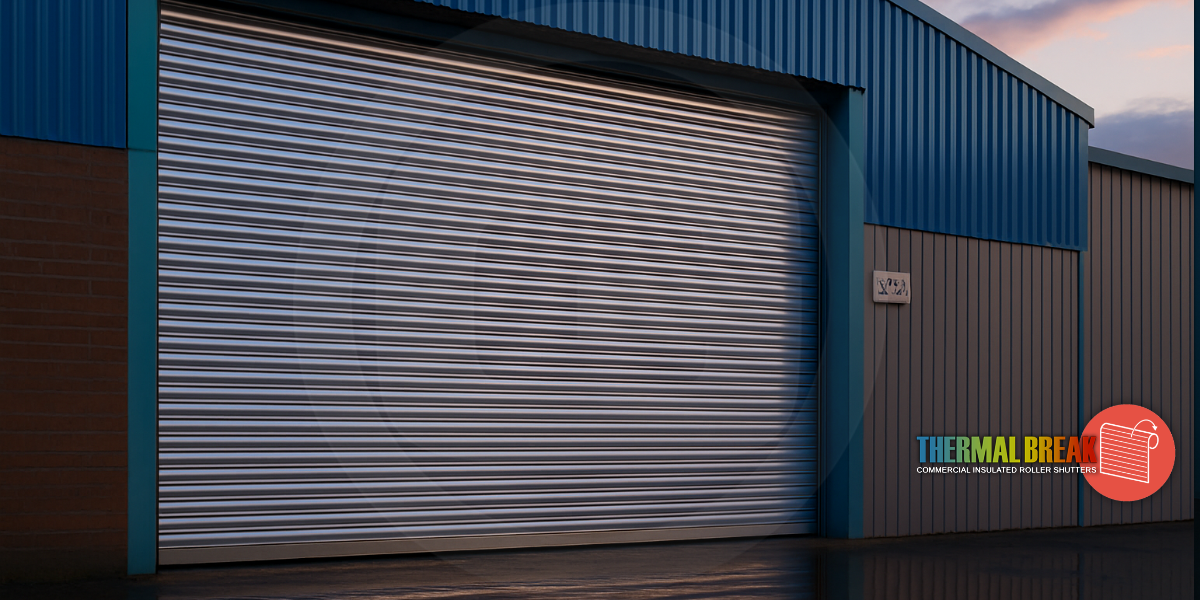

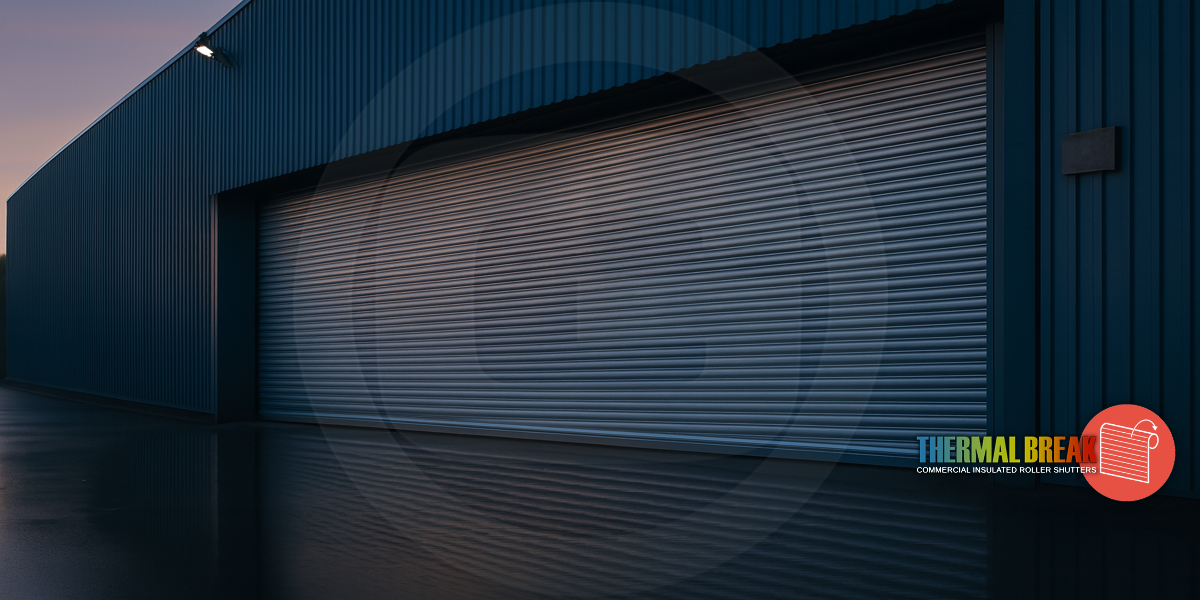

Image Gallery
Peace of Mind Warranties
All Guardian products are guaranteed against defect of material or workmanship by Guardian Doors, subject to correct maintenance and operation, for a period of 12 months from the date of installation. We offer extended warranties for up to 5 years with an agreed maintenance contract.
Call us on 0800 7836602 for more details.
